Panel fixing clips, onto vertical wires

Description

Panel fixing clips attach panels to vertical wires

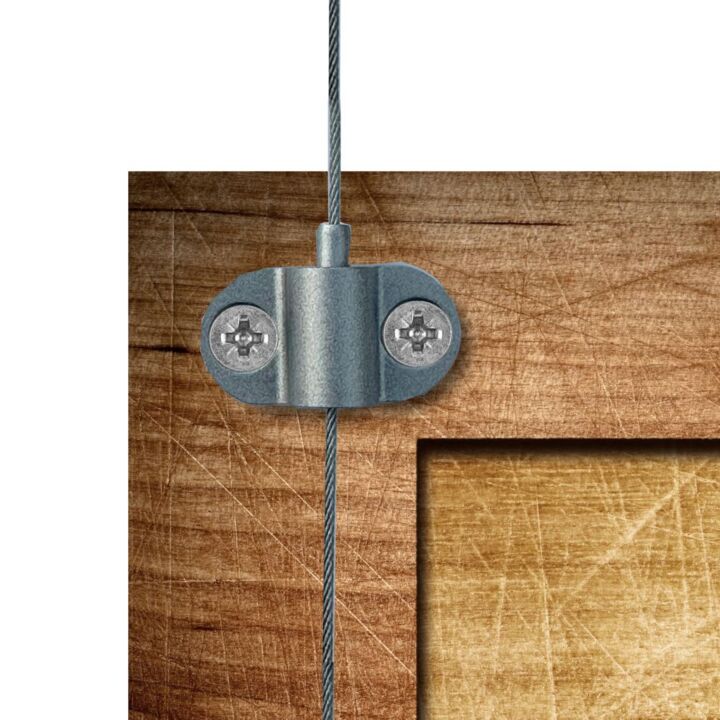

Butterfly brackets are neat panel fixing clips for attaching graphic panels, display boards, acoustic panels and the like onto vertical wires.  The small butterfly-shape panel fixing clips are screwed onto the back or sides of a panel. They are then threaded onto pre-installed 1.5mm diameter hanging wires, spaced apart at the correct centres to match the panel fixing brackets.

• Panel hanging brackets are quick to install with an inbuilt cable gripper mechanism.
• Fine height adjustment is made easy with the finger-release clutch built into each fitting.
• These panel fixing clips are made from a satin finish alloy casting (nickel plated).
• The panel hanging brackets are sold singly, but are generally used in pairs or more often in fours (near the corners of the panel).
• Hanging wires can be fixed to the wall or to the ceiling, with the weight of the panel acting as tensioner.
• Alternatively, we offer floor-to-ceiling kits where the vertical wire can be tensioned - select according to your application. See below.

Each fitting can support a 10kg load provided that the panel material is soundly receptive to screw fixings and the hanging wire is adequately anchored to the wall, soffit or ceiling. With 4 panel fixings we recommend the panel weight is limited to 25kg to allow a good margin of safety.
