Outdoor lightbox with snap frame action for easy poster change with hex key lock
Energy efficient LED rear illuminated exterior poster display with waterproof seal
4 sizes including Quad movie poster and Large A0
From
£250.80 From
£209.00
Description
Outdoor LED lightbox poster cases
Backlit lightbox poster displaycase for use outdoors offering striking visual attraction after dark. The design of this exterior grade light box allows it to be fully waterproof for mounting on the outside wall of a building. The power supply lead must pass through the wall to connect indoors to a standard UK style 13A socket.
Integral LED backlighting is bright yet economical to run and long lasting. The power supply unit (transformer to convert to safe 12V) can be mounted outdoors or inside - the advice of a qualified electrician should be sought depending on the local circumstances.
Snap open front profiles enable easy poster change. A locking screw which requires an allen key to open prevents unwanted tampering.
LED edge lighting of the specially designed light guiding plate achieves even illumination and a bright image, lit from behind.
A suitable poster - preferably printed on backlit film, although regular paper will do provided it is not too opaque - is mounted easily inside the snap poster frame.
The poster is placed behind the PET protective cover sheet. A waterproof gasket ensures the poster and electrical components are kept dry.
Outdoor light boxes are stocked in 4 standard sizes. For larger quantities or for other sizes please allow around four weeks. Please call for availability.
Specification of these exterior grade light boxes.
Frame width is 35mm with silver anodised finish. The frame is designed like a regular snap frame to allow front access for posters. All models are lockable by means of an allen key type lock on one of the four profiles. The other 3 sides cannot be opened until the locking profile has been released.
Front to back thickness is 30mm offering a slim and sleek appearance.
Power supply is rate IP67 (technical standard of waterproofing). The cable entry to the base of the lightbox can be from below (i.e. up the wall) or from the rear (i.e. through the wall). See illustration below which shows the swivel cable entry feature.
The light output is in the range 1900 to 2300 lux for all Waterproof Smart LEDbox units - bright enough to be eye-catching in dull interior lighting and at striking after dark and at night.
The stated sizes are the poster size. The external frame size is larger (61mm larger than poster); the visible copy area is slightly smaller (9mm smaller than poster size).

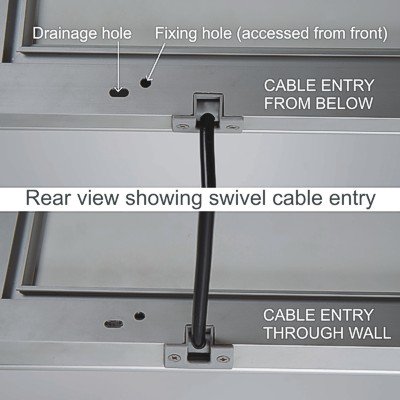

Swivel cable entry allows connection from the rear or from below the lightbox
Dimensions of the available sizes are as follows: Dimensions are stated as Width x Height when the frame is presented in a portrait orientation.
Product Code
Poster Size
Copy Size
External Size
Lighting
SM.LED.A2WK
420 x 594mm
411 x 585mm
481 x 655mm
1800 - 2100 LUX
SM.LED.A1WK
594 x 841mm
585 x 832mm
655 x 902mm
1600 - 1900 LUX
SM.LED.30.40WK
762 x 1016mm
753 x 1007mm
823 x 1077mm
1400 - 1700 LUX
SM.LED.A0WK
841 x 1189mm
832 x 1180mm
902 x 1250mm
1000 - 1200 LUX
30 x 40" and A0 are oversized products some shipping restrictions will apply.
We offer a choice of delivery options tailored to the goods selected and your location, calculated for you automatically in the Checkout. When feasible, you will be offered options for Free, Economy or Next Day delivery.
Any product returned by the purchaser must be unused and in its original packaging, which should be unmarked. If goods are received damaged or faulty we will take care of the problem.
For detailed information about Delivery charges or Returns and refund policies, please click on the links below.
Download Data Sheet
