Quality curved sign holder A5 or A6

Specifications

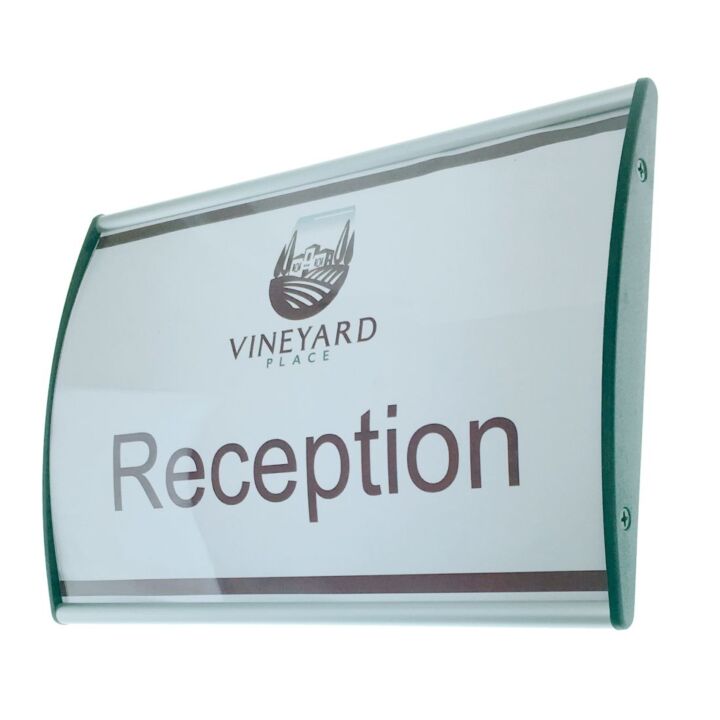

Each curved face print holder comprises a slightly curved aluminium extrusion fitted with either black or silver-grey plastic end caps which are secured to the body of the holder by screws. The end caps are pre-assembled and do not need to be removed.

Our standard specification now has a silver body with black end caps.

Portrait or Landscape

A5 and A6 size Alu Eclips is also supplied in a single format (dual use - portrait or landscape). Simply rotate the sign holder before it is fixed to enable to enable landscape A6/A5 inserts to be displayed.

When A6/A5 signs are printed landscape the endcaps will be located on the left and right hand side of the holder (as opposed to the top and bottom for portrait).

Alu Eclips is also available in A3 and A4 sizes and small 100mm square size.

See the complete curved sign system range.

Fixing

The standard unit with black end caps is fixed to the wall or door by screwing through the body of the frame.  Screws and wall plugs are supplied.
Note: Black endcap A5 and A6 models may also be fixed to suitable surfaces using double sided adhesive tape instead of screws but in this case adhesive tape has to be ordered separately.

Inserting your printed door sign

Inserts can be produced on any office printer and then trimmed to size using a paper trimmer or office guillotine.  We suggest you use the clear plastic lens as a cutting guide.

The print and front cover then fit into the front channels in the extrusion simply by flexing into place. The front cover ends up flush with the front of the frame, forming an attractive curve.

The front lens can be removed with the aid of a suction cup - normally one sucker is supplied for every 5-10 Alu Eclips frames unless extras are requested.

• A5 inserts (size 148x210mm) can be produced two at a time on an A4 printer.
• A6 inserts (size 105x148mm) can be produced four at a time on an A4 printer.
