Cylinder ceiling hanging fitting with hook

Screw-on hanger mounting instructions:

1. Unscrew the gripper mechanism from the barrel.
2. Position the barrel against the ceiling and carefully mark the fixing location.
3. Decide whether to use the plastic screw plug or screw directly into the ceiling (consult a tradesman if in doubt about how to achieve a suitable fixing).  Check for electrical cables or pipes before drilling.
4. Screw the barrel to the ceiling.
5. Insert the plain end of the cable into the gripper and screw the gripper into the barrel with the cable exiting throught the side slot.
6. Adjust the height of the hook as required.   Use the clucth release button to extend the cable if required.
7. Cut off excess cable with good wire cutters when you are quite satisfied that the height is correct and the suspended component is dead level.

Cable specification:

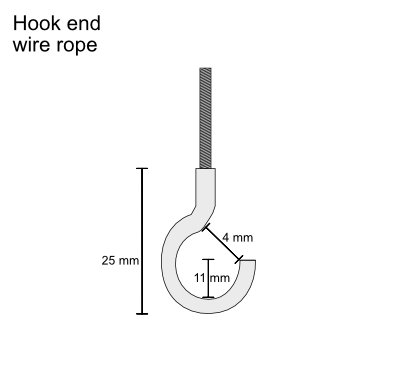

Mini hook (zinc plated) bonded onto 1.2mm galvanised steel cable, length 2 metre, can be shortened after adjustment on site with good quality wire cutters.  Safe working load up to 10kg with 5:1 safety factor.

Ceiling hanger specification:

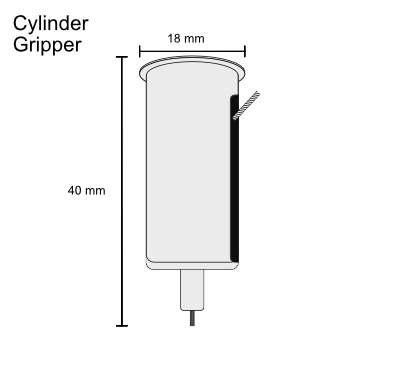

Cylinder ceiling tensioner with built in clutch mechanism, nickel plated.  Clutch release button provided at cable entry point.  Side exit aperture for excess cable to emerge (prior to trimming any excess).

Precautions:

Do not lubricate the gripper mechanism.
Do not overload and ensure that your ceiling fixing method is appropriate to the ceiling construction and intended loading.
Do not paint the the gripper.
Only intended for static loads and for use indoors.
Installers must satisfy themselves that the sign hanging kit is suitable for the specific application as site circumstances are beyond our control.
