Interior directional signs 25 or 30 cm wide with tape

Direction signage system with easy stick-to-the-wall or door adhesive tape pre-applied
Value indoor directions wall signs with flex-in front lens to protect your own printed insert
Stick-on only model - easy to apply and is very secure on most surfaces.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Interior directional signs 25 or 30 cm wide with tape

Direction signage system with easy stick-to-the-wall or door adhesive tape pre-applied
Value indoor directions wall signs with flex-in front lens to protect your own printed insert
Stick-on only model - easy to apply and is very secure on most surfaces.

From £6.72 From £5.60

Description/Code	1-9	10+	25+	100+		QTY	ex VAT	Order
	Total Qty
Prices shown are ex VAT	Total

Qty

Description

Direction system - 25 or 30cm slat length

This value direction system for indoor directions is a great option for businesses looking to enhance interior wayfinding on a budget. The signage slat system is available in two widths to suit most buildings and has a curved silver aluminium body and a clear plastic (PETG) print protector. This type of sign is particularly good when directional signs need to be changeable, for instance, when room or department locations change.

Robust curved metal sign in brushed silver finish with clear plastic (PETG) print protector and black end caps.
Supplied with adhesive tape pre-applied to the back of the sign for mounting either directly to the wall or onto a backing board.
Can be used with printed sign inserts or flexible sign substrates up to 1mm thick (eg. for use with engraving laminates).
Supplied with a suction tool to aid removal of plastic protector.
Two sizes of 10x25 cm and 15x30 cm.

For higher-specification curved aluminium door signs which can be screwed to the wall please refer to the links below.

HOW TO DESIGN YOUR SIGN for 10 x 25 cm wall sign

Various graphics software packages can be used but if you prefer to use Word these tips might help:
Go into Layout Tab and select Orientation>Landscape (so it will fit onto A4 paper)
Go into Insert tab Text Box>Draw a text box (or adapt a ready-made Word text box).
Use size controls to accurately set the box height to 10cm and width to 25cm. You can use this as a trimming guide after printing.
Click inside the box to start typing adjusting font type and font size to achieve your desired layout. Make sure you leave enough space all around your text.

HOW TO DESIGN YOUR SIGN for 15 x 30 cm wall sign

Adapt the above instructions to this larger size - but ideally use an A3 size printer as the longest side of A4 is slightly less than the optimum (29.7 cm instead of 30 cm).

About this range of wall signs

All curved aluminium signs in this range are supplied with black plastic end caps and come with a sunction tool to make it easy to remove the plastic cover sheet. The table below covers all sizes in the range defining the size of print you require and indicating the top and bottom margin which will not be visible once the print is inserted into the slat.

Item.                   External size       Print size           Visible copy size
WDS.50.150          68 x 156 mm          52 x 150mm         46 x 150mm
WDS.50.250          68 x 156mm           52 x 250mm        46 x 250mm
WDS.75.150          90 x 156mm           74 x 150mm         68 x 150mm
WDS.75.250          90 x 256mm           74 x 250mm        68 x 250mm
WDS.100.250        120 x 256mm         105 x 250mm       99 x 250mm
WDS.100.600        120 x 606mm         105 x 600mm       99 x 600mm
WDS.150.300        162 x 306mm         148 x 300mm       142 x 300mm
WDS.150.600        162 x 606mm         148 x 600mm       142 x 600mm

Download Data Sheet

Paper Size		Approx		Exact
Name	Notes	cm	inch	mm	inch (fractions)
A7		7 x 10 cm	3 x 4 inch	74 x 105 mm	2-7/8" x 4-1/8"
A6		10 x 15 cm	4 x 6 inch	105 x 148 mm	4-1/8" x 5-7/8"
1/4 A4		7 x 21 cm	3 x 8 inch	74 x 210 mm	2-7/8" x 8-1/4"
DL	1/3 A4	10 x 21 cm	4 x 8 inch	99 x 210 mm	3-7/8" x 8-1/4"
1/2 A4		10 x 30 cm	4 x 12 inch	105 x 297 mm	4-1/8" x 11-3/4"
A5		15 x 21 cm	6 x 8 inch	148 x 210 mm	5-7/8" x 8-1/4"
A4		21 x 30 cm	8 x 12 inch	210 x 297 mm	8-1/4" x 11-3/4"
A3		30 x 42 cm	12 x 16.5 inch	297 x 420 mm	11-3/4" x 16-1/2"
A2		42 x 65 cm	16.5 x 23 inch	420 x 594 mm	16-1/2" x 23-3/8"
A1		59 x 84 cm	23 x 33 inch	594 x 841 mm	23-3/8" x 33-1/8"
A0		84 x 119 cm	33 x 47 inch	841 x 1188 mm	33-1/8" x 46-3/4"

Interior directional signs 25 or 30 cm wide with tape

Direction system - 25 or 30cm slat length

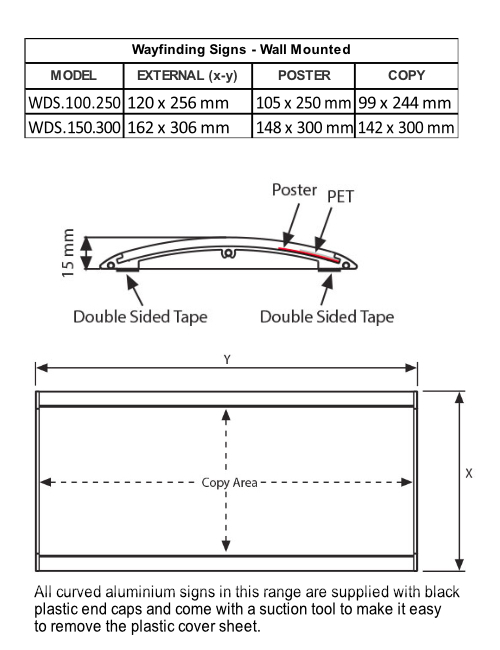

Dimensions For Wayfinder Signs
