Directory board system - med (25cm wide)

Adhesive backed aluminium slats for creating medium directory signs using printed inserts
The width of this system is 250mm (10"). There are three heights of slat: 100mm, 75mm or 50mm
Order individual slats - or select one of the two starter sets comprising one header plus three narrower slats

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Directory board system - med (25cm wide)

Adhesive backed aluminium slats for creating medium directory signs using printed inserts
The width of this system is 250mm (10"). There are three heights of slat: 100mm, 75mm or 50mm
Order individual slats - or select one of the two starter sets comprising one header plus three narrower slats

From £6.72 From £5.60

Description/Code	1-9	10+	25+	100+		QTY	ex VAT	Order
	Total Qty
Prices shown are ex VAT	Total

Qty

Description

Directional signage system - 25cm long slat

The medium size directory system creates wall mounted office directory boards 250mm (10") wide.
These directory signs are perfect for interior signage in buildings that require occasional updates of the inserted graphics. This directory board system allows you to design your own completely bespoke directory sign system with easily changeable graphics using a regular A4 size office printer and small guillotine.

Modular directory system so different height slats of the same width can be combined as required. Two starter sets are available with either a 100mm (4") or 75mm (3") high header plus 3 no. 50mm (2") high lower bars.
Can be used with printed sign inserts or flexible sign substrates (up to 1mm thick). Supplied with suction tool to aid removal of plastic protector.
Slats are supplied with adhesive tape pre-applied to back of sign for mounting directly to the wall.
Curved silver aluminium slat with clear plastic (PETG) print protector - order slats in sets of 4 or individually.

Download Data Sheet

Paper Size		Approx		Exact
Name	Notes	cm	inch	mm	inch (fractions)
A7		7 x 10 cm	3 x 4 inch	74 x 105 mm	2-7/8" x 4-1/8"
A6		10 x 15 cm	4 x 6 inch	105 x 148 mm	4-1/8" x 5-7/8"
1/4 A4		7 x 21 cm	3 x 8 inch	74 x 210 mm	2-7/8" x 8-1/4"
DL	1/3 A4	10 x 21 cm	4 x 8 inch	99 x 210 mm	3-7/8" x 8-1/4"
1/2 A4		10 x 30 cm	4 x 12 inch	105 x 297 mm	4-1/8" x 11-3/4"
A5		15 x 21 cm	6 x 8 inch	148 x 210 mm	5-7/8" x 8-1/4"
A4		21 x 30 cm	8 x 12 inch	210 x 297 mm	8-1/4" x 11-3/4"
A3		30 x 42 cm	12 x 16.5 inch	297 x 420 mm	11-3/4" x 16-1/2"
A2		42 x 65 cm	16.5 x 23 inch	420 x 594 mm	16-1/2" x 23-3/8"
A1		59 x 84 cm	23 x 33 inch	594 x 841 mm	23-3/8" x 33-1/8"
A0		84 x 119 cm	33 x 47 inch	841 x 1188 mm	33-1/8" x 46-3/4"

Directory board system - med (25cm wide)

Directional signage system - 25cm long slat

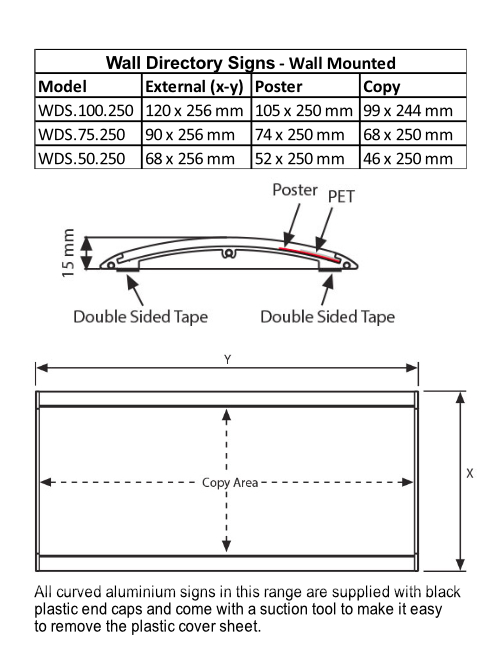

Dimensions for Wall Directory Signs
